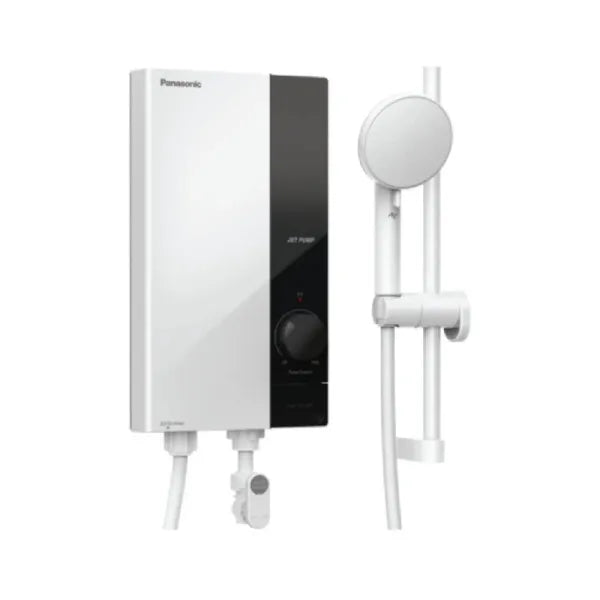

Panasonic U Series Jet Pump Water Heater DH-3UP1MW

Specifications

• Pump Type: Non-Pump / DC Pump

• Type: Non-LCD (Analogue)

• Power Supply: 240V, 50Hz

• Rated Power: 3.6 kW

• Water Pressure:

• Minimum: 0.05 kgf/cm²

• Maximum: 3.87 kgf/cm²


• Dimensions (H x W x D): 385 x 210 x 78 mm

• Main Unit Weight: 2.7 kg

• Body Colour: Crystal White

• Standard Regulation: SURUHANJAYA TENAGA (Safety)

• ELB Indication Method: Red ELB light

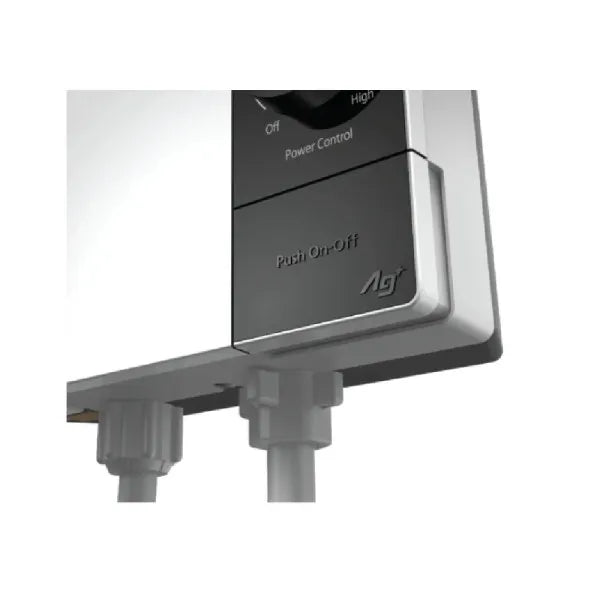

• Water Stop System: One Push On/Off Switch


9 Safety Features

1. Water Splash Proof Case Cover – IEC 60529 (IP2X)

2. Durable Copper Heater Unit

3. One Push On/Off Switch

4. Insulated Structure – IEC 60529 (IP2X)

5. Built-in Earth Leakage Breaker (ELB)

6. Water Flow Sensor

7. Non-flammable Material Cover

8. Manual Reset Thermostat

9. Auto Thermal Cut-off – 55ºC
